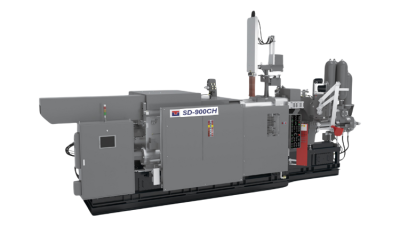

900-Ton Cold Chamber Die Casting Machine | SD-900 CH

High-end Intelligent Model

Meter-In, Injection System

Item	Units	SD-900 CH
Die Locking Force	KN	9000
Die Platen Dimensions (HxW)	mm	1400x1400
Space between Tie Bars	mm	931x931
Tie Bar Diameter	mm	190
Die Stroke	mm	760
Die Thickness	mm	400~950
Solenoid Valve for Core	Piece	1/2"x3
Hydraulic Outlet	Set	3/4"x5
Injection Force	KN	653
Plunger Stroke	mm	750
Plunger-Tip Projection Distance	mm	350
Injection Port Position	mm	-250 or -275
Dry Shot Speed	M/S	7 / 8
Plunger-tip Diameter	mm	Min.	Sta.	Max.
Plunger-tip Diameter	mm	80	90	100
Maximun Casting Pressure	Mpa	130	102.8	83.1
Casting Area	cm²	653 904	826 1144	1022 1414
Actual Shot Weight	Kg	7.3	9.2	11.4
Ejection Force	KN	340
Ejection Stroke	mm	125
Hydraulic Motor	kw	45
Amount of Hydraulic Fluid	L	860
Amount of Cooling Water for Oil Cooling	L/min	150-180
Amount of Cooling Water for Die Casting Cooling	L/min	150
Machine Weight	ton	50
Machine Size	mm	9990x2450x3556
