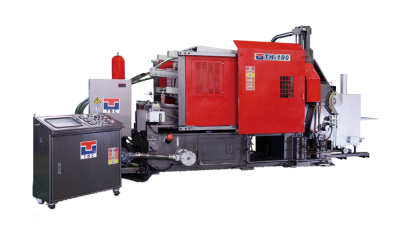

HOT CHAMBER DIE CASTING MACHINE
High-Quality Die Casting Machines Zinc Alloys for Optimal Productivity -
Precision Performance, User-Friendly Design
⚙️ Compatible with zinc, magnesium, and low-melting alloys
🔒 Consistency & Durability
🏗️ Stable Mechanical Design
🖥️ User-Friendly Interface Control
🤖 Effortless Operation and Handling
💰 Competitive price with global-standard quality
TBC’s hot chamber zinc alloys die casting machines are engineered for precision, durability, and ease of use. We offer a wide range of models to meet the needs of manufacturers worldwide.
With continuous R&D and advanced production capabilities, TBC delivers reliable, efficient solutions that help you optimize your die casting operations and reduce long-term costs.
- Controlled by Proportional solenoid valve
-Excellent in injection intensity
-Precisely control to enhance component quality
- Three-phase injection mechanism
-Provide low speed, high speed, and pressure retention
-Enhance air-tightness in pressure retention period
Controlled By Proportional Solenoid Valve
Three-phase Injection Mechanism
- Data Management
-Up to 250 sets of casting conditions able to be stored
-Enhance management efficiency
- Error message display
-Abnormal message for troubleshooting
- Three curves displayed in the figure: Pressure, Distance and Time
- Injection data will be displayed on the screen for further usage
- Proportional Solenoid Valve
-Smooth die close/open
-Short die close/open cycle
- Adjustable Sliding Shoes
-Adjustable platen height
-Keep movable platen in center position
- Freely switch between time/distance in low speed injection modes
- Effectively control the pressure and speed of injection with measured values provided
| Model | Units | TH-75 | TH-130 | TH-190 | TH-250 |
|---|---|---|---|---|---|
| Planten Part | |||||
| Die clamping force | ton | 75 | 130 | 190 | 250 |
| Tie bar diameter | mm | 60 | 75 | 90 | 110 |

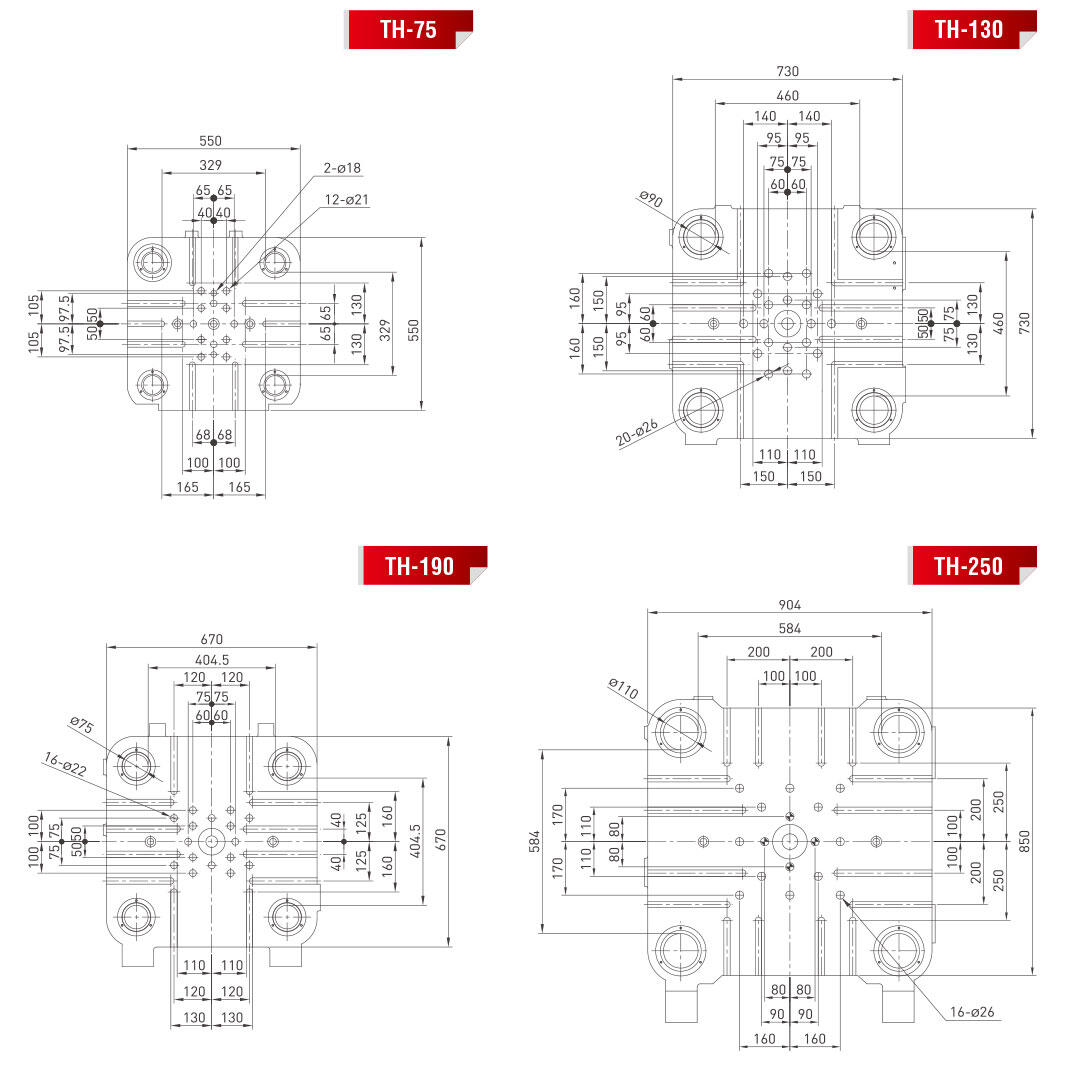

| Die platen dimensions (HxV) | mm | 550 x 550 | 640 x 640 | 730 x 730 | 850 x 904 |
| Space between tie bars | mm | 329 x329 | 400 x 400 | 460 x 460 | 584 x 584 |
| Die stroke | mm | 210 | 310 | 350 | 380 |
| Die thickness | mm | 120~400 | 140~480 | 150~500 | 200~600 |
| Nozzle matching force | mm | 5.1 | 6.0 | 7.5 | 13.0 |
| Nozzle stroke | mm | 200 | 200 | 200 | 250 |
| Injection part | |||||
| Injection cylinder diameter | mm | 80 | 100 | 120 | 120 |
| Maximum injection force | ton | 5 | 7.85 | 10 | 12.5 |
| Maximum injection stroke | mm | 125 | 190 | 190 | 200 |
| Injector rod diameter (standard) | mm | 50 | 60 | 65 | 75 |
| Actual shot weight (zinc) | g | 1200 | 2500 | 3000 | 4500 |
| Furnace capacity (zinc) | mm | 0 , 60 | 0 , 80 | 0 , -100 | 0 , -150 |
| Maximum casting area | cm² | 253 | 494 | 615 | 929 |
| Casting pressure | kg/cm² | 256 | 200 | 238 | 269 |
| Ejection part | |||||
| Ejection force | ton | 5 | 6 | 7.5 | 10.5 |
| Ejection stroke | mm | 70 | 70 | 80 | 100 |
| Hydraulic part | |||||
| Operating pressure | kg/cm² | 110 | 110 | 110 | 125 |
| Accumulator (hydac) N2 (injection) | l/ea | 20 x 1 | 20 x 2 | 20 x 2 | 32 x 2 |
| Accumulator (hydac) N2 (die close) | l/ea | 10 x 1 | 20 x 1 | 32 x 1 | 50 x 2 |
| Oli tank capacity | l | 200 | 400 | 600 | 800 |
| Electrical part | |||||
| Electrical motor | kw | 11.0 | 15.0 | 18.5 | 30.0 |
| Machine size | |||||
| Machine weiht | ton | 5 | 7.5 | 10.5 | 14.7 |
| Machine size | m | 4.2x2.0x1.8 | 4.3x2.2x2.3 | 4.8x2.1x2.5 | 5.5x2.2x2.6 |
