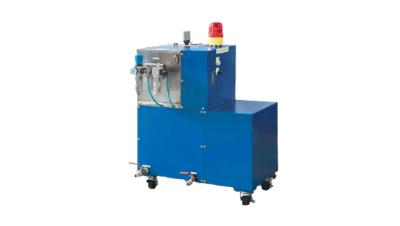

Release Agent Dilutor SF-25B
- Dilution rate stable & set easily of dosing system.
- Large dilution range & flow rate of dosing system.
- Large flow-rate of diaphragm pump.
- Stable outlet pressure of diaphragm pump.
- With lower level sensor for release agent.
- With lower level sensor for diluted fluid.
- With alarm function for water input low pressure and diluted fluid output low pressure.
- Easy to maintain.
| Item | SF-25B |
|---|---|
| Applied To Auto Sprayer | SS-15/4台(Max.) or SS-35 /4台(Max.) SS-65/2台(Max.) or SS-80 /2台(Max.) |
| Dilution Rate | 40 ~ 330 |
| Tank Volume | 38 Liters |
| Water Input Pressure | 0.1 ~ 8 Bar |
| Water Temperature | 5°C ~ 40¡C |
| Output Pressure | 2 ~ 5 Kgf/cm² |
| Maximum Flow Rate of Pump | 159 Liters/Minute |
| Air Pressure | 5 Kgf/cm² |
| Air Consumption | 200 Liters/Minute |
| Power Voltage | AC 220V |
| Operation Voltage | DC 24V |
| Dimension ( L x W x H ) | 850 x 600 x 1050 mm |
| Net Weight | 83 kg |
