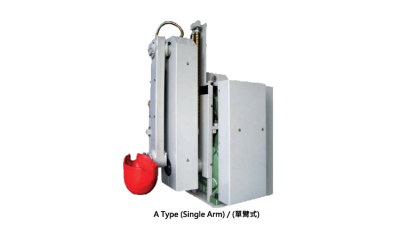

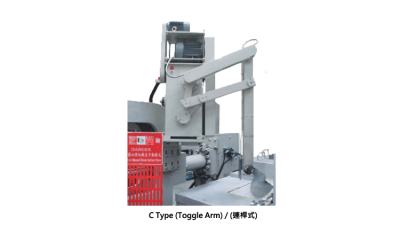

Auto Ladler
- Accurate molten metal supply positioning for high reliability.
- VF control, stable speed change; stable molten metal surface, accurate ladling.
- Time and speed can be set externally thus making adjustment easily.
- AC motor is adopted for long time continual operation without maintenance.
- Special material adopted to ladle shaft that is matched with special journal for long time operation at high temperature and under no lubrication condition.
| Item | SL-15A/C | SL-35A/C | SL-65A/C | SL-80A/C |
|---|---|---|---|---|
| Applied D.C.M. (ton) | 100~200T | 250~400T | 500~650T | 800T |
| Ladle Volume (Kg) | 0.2 ~ 2.0 | 0.4 ~ 4.5 | 4.0 ~ 6.0 | 4.0 ~ 8.0 |
| Ladle Size (Kg) | 0.4 , 0.8 , 1.5 | 1.5 , 2.0 , 3.5 | 4.6 , 6.0 | 6.0 , 8.0 |
| Cycle Time (Sec.) | 12 (Sec) | 16 (Sec) | 16 (Sec) | 18 (Sec) |
| Min. Crucible Dia. (mm) | 450 | 500 | 650 | 700 |
| Arm Motor (KW) | 0.4 | 0.4 | 1.5 | 1.5 |
| Ladle Motor (KW) | 0.4 | 0.4 | 0.75 | 0.75 |
| Ladle Depth (mm) | 350 | 480 | 550 | 550 |
| Power Voltage (V) | AC220V AC380V | AC220V AC380V | AC220V AC380V | AC220V AC380V |
| Operate Voltage (V) | DC24V | DC24V | DC24V | DC24V |
| Machine Weight (Kg) | 229 | 249 | 369 | 398 |
| ★There may be interference for applying to different die casting machines. | ||||
Recommend
Vaccum System SV-2
- The vacuum system is a device to provide negative pressure for die during die-casting.
- Vacuum die-casting can Improve density of the casting product, get rid of surface flow marks and gas porosity inside the casting product, reduce the difficulty of casting, increase qualified rate of casting product, extend service life of die, strengthen the casting product to enhance its pressure resistance, leakage resistance, and welding feature.
Servo Sprayer
Mandatory die Casting Auxiliary｜Servo Sprayer
Servo Sprayer can be containing all of the advantages of normal sprayer. If you using servo motor with high endurance bearing adopted in driving sprayer for fast up/down movement and have an energy saving advantage.
- Containing all of the advantages of normal sprayer.
- Easy for follow-on maintenance and adjustment.
- Highly efficient spraying with ability to do fine movement vertically.
- Able to reduce usage of release agent by 50~70%.
- Able to shorten the cycle time by 1~5 secs.
- Able to enhance product quality by lowering porosity
Auto Sprayer
- Unique pneumatic circuit design, even misting with good effect.
- Mist spraying can be adjusted easy by time and flow valve.
- Fixed, removable die mist spraying can be adjusted individually.
- Copper tube direction can be set easily, applicable to any complicate dies.
- Copper tube base can be easily replaced.
- Ascending limit position can be locked automatically upon no air pressure.
Release Agent Dilutor SF-25B
- Dilution rate stable & set easily of dosing system.
- Large dilution range & flow rate of dosing system.
- Large flow-rate of diaphragm pump.
- Stable outlet pressure of diaphragm pump.
- With lower level sensor for release agent.
- With lower level sensor for diluted fluid.
- With alarm function for water input low pressure and diluted fluid output low pressure.
- Easy to maintain.
Release Agent Dilutor SF-65A
- Dilution rate stable & set easily of dosing system.
- Large dilution range & flow rate of dosing system.
- Large flow-rate of diaphragm pump.
- Stable outlet pressure of diaphragm pump.
- With lower level sensor for release agent.
- With lower level sensor for diluted fluid.
- With alarm function for water input low pressure and diluted fluid output low pressure.
- Easy to maintain.
Die Casting Robot
Robotic system integration with TBC machines.
Application includes extracting, spraying, transporting and loading etc. Improving production efficiency.
