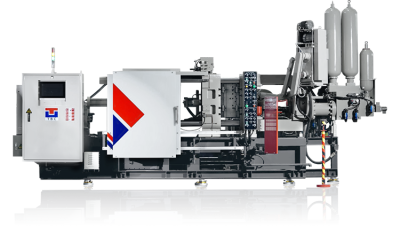

420-Ton Cold Chamber Die Casting Machine | SD-420 CH

High-end Intelligent Model

Meter-In, Injection System

Item	Units	SD-420 CH
Die Locking Force	KN	4200
Die Platen Dimensions (HxW)	mm	1010x1010
Space between Tie Bars	mm	652x652
Tie Bar Diameter	mm	125
Die Stroke	mm	420
Die Thickness	mm	300~700
Solenoid Valve for Core	Piece	3/8"x1 3/8"x2
Hydraulic Outlet	Set	1/2"x2 1/2"x3
Injection Force	KN	354
Plunger Stroke	mm	425
Plunger-Tip Projection Distance	mm	165
Injection Port Position	mm	-150
Dry Shot Speed	M/S	6	7	8
Plunger-tip Diameter	mm	Min.	Sta.	Max.
Plunger-tip Diameter	mm	60	70	80
Maximun Casting Pressure	Mpa	109.9	80.6	61.7
Casting Area	cm²	312 485	425 661	555 864
Actual Shot Weight	Kg	2.35	3.20	4.18
Ejection Force	KN	190.1
Ejection Stroke	mm	100
Hydraulic Motor	kw	22.5
Amount of Hydraulic Fluid	L	480
Amount of Cooling Water for Oil Cooling	L/min	25
Amount of Cooling Water for Die Casting Cooling	L/min	25-50
Machine Weight	ton	12.8
Machine Size	mm	6275x1835x2975
