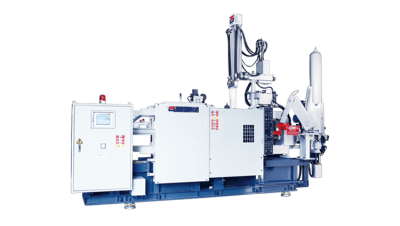

580-Ton Cold Chamber Die Casting Machine | SD-580 CF

Advanced Aluminium Die Casting

Powerful Performance. Fast Cycle Time. Efficient & Stable. Easy To Use.

Item	Units	SD-580 CF
Die locking force	KN	5800
Die platen dimensions (HxW)	mm	1090x1180
Space between tie bars	mm	750x750
Tie bar diameter	mm	150
Die stroke	mm	560
Die thickness	mm	350~850
Solenoid valve for core	Piece	1/2"x2
Hydraulic outlet	Set	3/4"x3
Injection force	KN	506
Plunger stroke	mm	580
Plunger-tip projection distance	mm	250
Injection port position	mm	-175
Dry shot speed	M/S	6	7	8
Plunger-tip diameter	mm	Min. 70	Sta. 80	Max. 90
Maximun casting pressure	Mpa	117.7	90	71.1
Casting area	cm²	416 624	544 816	688 1033
Actual shot weight	Kg	4.35	5.68	7.19
Ejection force	KN	259.7
Ejection Stroke	mm	110
Hydraulic motor	kw	37
Amount of hydraulic fluid	L	700
Amount of cooling water for oil cooling	L/min	80
Amount of cooling water for die casting cooling	L/min	50-90
Machine weight	ton	23
Machine size	mm	7590x2065x3345

Model	500 CF
Model	CONTROLLER PART
Color touch screen
Alarm display
Injection terms setting
Screen print
PLATEN PART
Cycle time setting
Die open lubricating setting
Ejection stroke setting from screen
Movable platen adjustment
Toggles auto lubricating system
Auto tie bar puller
CORE PART
Selection of core movement timer
Selection of core pressure during injection
Movable core 1
Movable core 2
Fixed core 3
Pressure reducing valve for movable core 1&2
Pressure reducing valve for fixed core 3
INJECTION PART
Motorized injection valve
Injection curve display
Die cast conditions management
Injection speed display
Injection pressure display
Injection data display
Plunger-tip projection setting
Injection vacuum movement setting
Shot sleeve clean setting
Plunger-tip lubricating setting
Injection stroke setting from screen
Magnetic non-contact sensor
Intensifying pressure adjustment
HYDRAULIC & COOLING PART
Hydraulic oil temperature sensor
Hydraulic oil level sensor
Enhanced cooler
Auto pressure release device
Hydraulic oil filter device
SAFETY PART
Manual safety door
Full cover auto safety door
Non-operator side safety fence (without auto extractor)
Emegency stop
OTHERS
Energy saving system
Digital die locking force display
Quick mould change system
Squeeze pin interface
Piston accumulator
Movable platen reinforce board
AUXILIARIES
Auto ladler: Molten metal volume calculating
Auto adjustment for molten metal supply standby timer
Ladle descending position setting
Molten metal volume from screen
Auto extractor die height auto adjust
Auto sprayer die height auto adjust
Auto sprayer: Up down movement spray
Spray setting for male, female mold
Spray setting for cores
Fast auto production
Standard Option Not Available
