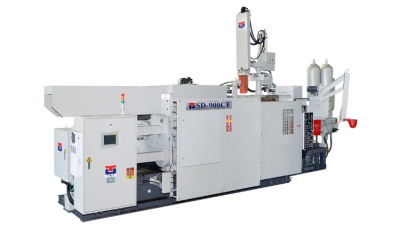

900-Ton Cold Chamber Die Casting Machine | SD-900 CF

Advanced Cold Chamber Die Casting Machine

Powerful Performance. Fast Cycle Time. Efficient & Stable. Easy To Use.

Item	Units	SD-900 CF
Die locking force	KN	9000
Die platen dimensions (HxW)	mm	1400x1400
Space between tie bars	mm	931x931
Tie bar diameter	mm	190
Die stroke	mm	760
Die thickness	mm	400~950
Solenoid valve for core	Piece	1/2"x3
Hydraulic outlet	Set	3/4"x5
Injection force	KN	653
Plunger stroke	mm	750
Plunger-tip projection distance	mm	350
Injection port position	mm	-250 or -275
Dry shot speed	M/S	7		8
Plunger-tip diameter	mm	Min. 80	Sta. 90	Max. 100
Maximun casting pressure	Mpa	130	102.8	83.1
Casting area	cm²	653 904	826 1144	1022 1414
Actual shot weight	Kg	7.3	9.2	11.4
Ejection force	KN	340
Ejection Stroke	mm	125
Hydraulic motor	kw	45
Amount of hydraulic fluid	L	860
Amount of cooling water for oil cooling	L/min	150 - 180
Amount of cooling water for die casting cooling	L/min	150
Machine weight	ton	50
Machine size	mm	9990x2450x3556

Model	850 CF
CONTROLLER PART
Color touch screen
Alarm display
Injection terms setting
Screen print
PLATEN PART
Cycle time setting
Die open lubricating setting
Ejection stroke setting from screen
Movable platen adjustment
Toggles auto lubricating system
Auto tie bar puller
CORE PART
Selection of core movement timer
Selection of core pressure during injection
Movable core 1
Movable core 2
Fixed core 3
Pressure reducing valve for movable core 1&2
Pressure reducing valve for fixed core 3
INJECTION PART
Motorized injection valve
Injection curve display
Die cast conditions management
Injection speed display
Injection pressure display
Injection data display
Plunger-tip projection setting
Injection vacuum movement setting
Shot sleeve clean setting
Plunger-tip lubricating setting
Injection stroke setting from screen
Magnetic non-contact sensor
Intensifying pressure adjustment
HYDRAULIC & COOLING PART
Hydraulic oil temperature sensor
Hydraulic oil level sensor
Enhanced cooler
Auto pressure release device
Hydraulic oil filter device
SAFETY PART
Manual safety door
Full cover auto safety door
Non-operator side safety fence (without auto extractor)
Emegency stop
OTHERS
Energy saving system
Digital die locking force display
Quick mould change system
Squeeze pin interface
Piston accumulator
Movable platen reinforce board
AUXILIARIES
Auto ladler: Molten metal volume calculating
Auto adjustment for molten metal supply standby timer
Ladle descending position setting
Molten metal volume from screen
Auto extractor die height auto adjust
Auto sprayer die height auto adjust
Auto sprayer: Up down movement spray
Spray setting for male, female mold
Spray setting for cores
Fast auto production
Standard Option Not Available
